0-190 Ohm Stainless Steel Fuel Level Sensor/Water Level Sensor, A5, for Cars, Boats, and Water Tanks, Color: mm Sensor, Parallel Import

*This item will take approximately 2-5 business days to ship.
. ………… . ………… . ………… . ………….

[Product Specifications]
■ Measurement range: 21mm
Signal output: 0-190 ohms
■ Operating voltage: 9-32VDC
■Current consumption: 60mA or less
■Operating temperature: -30~+75℃
■Storage temperature: -40~+85℃

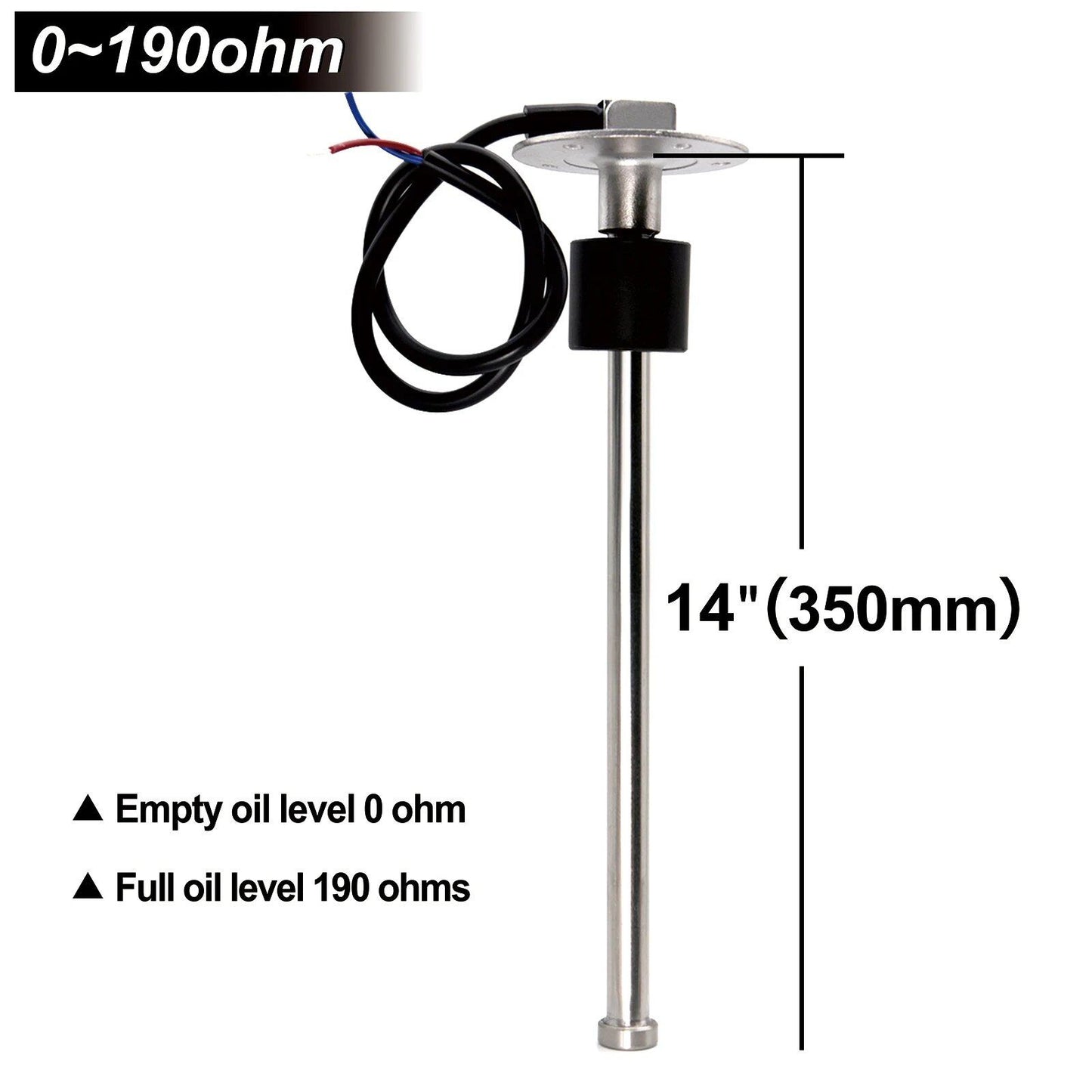

■Sensor height: Approximately 350 mm (13.8 inches)

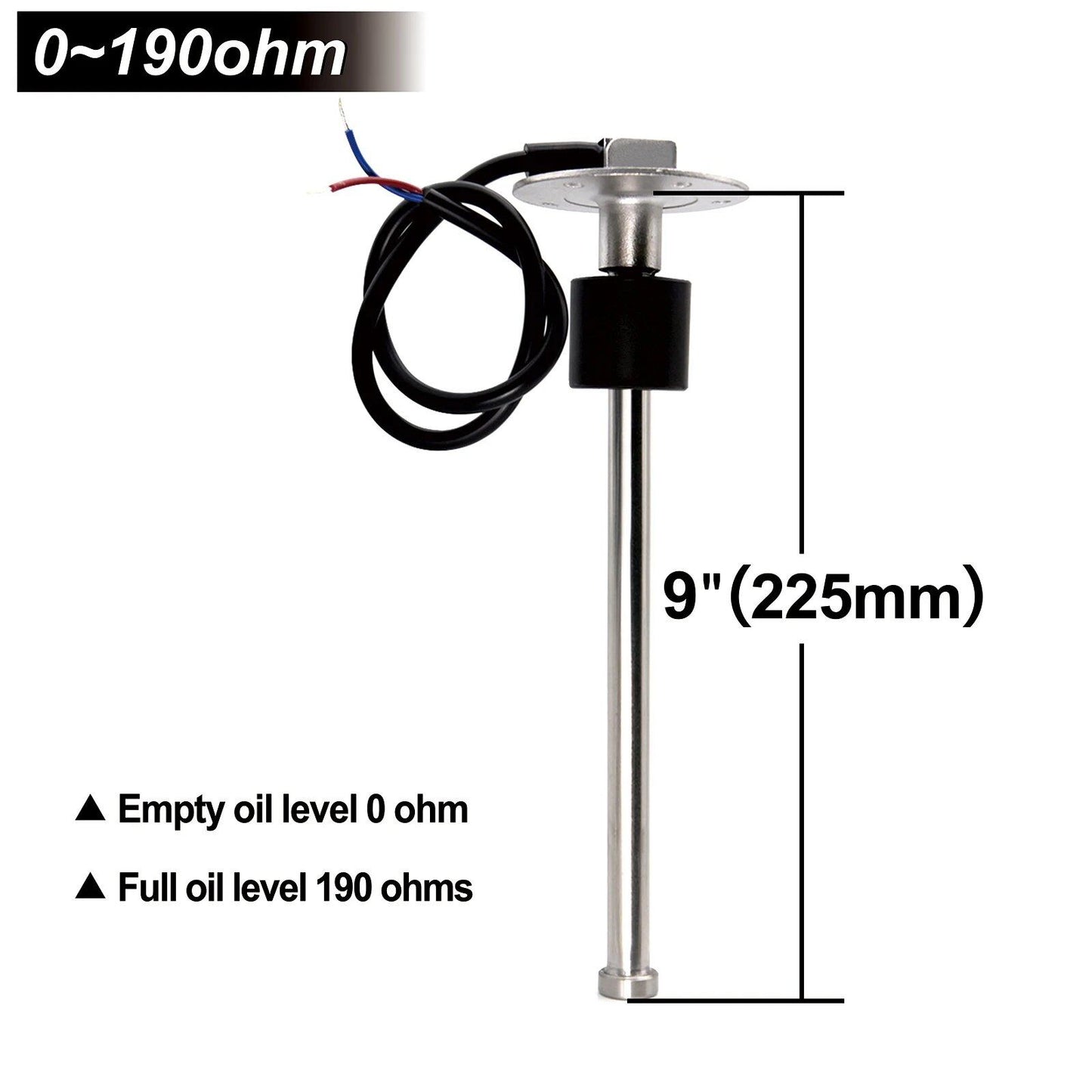

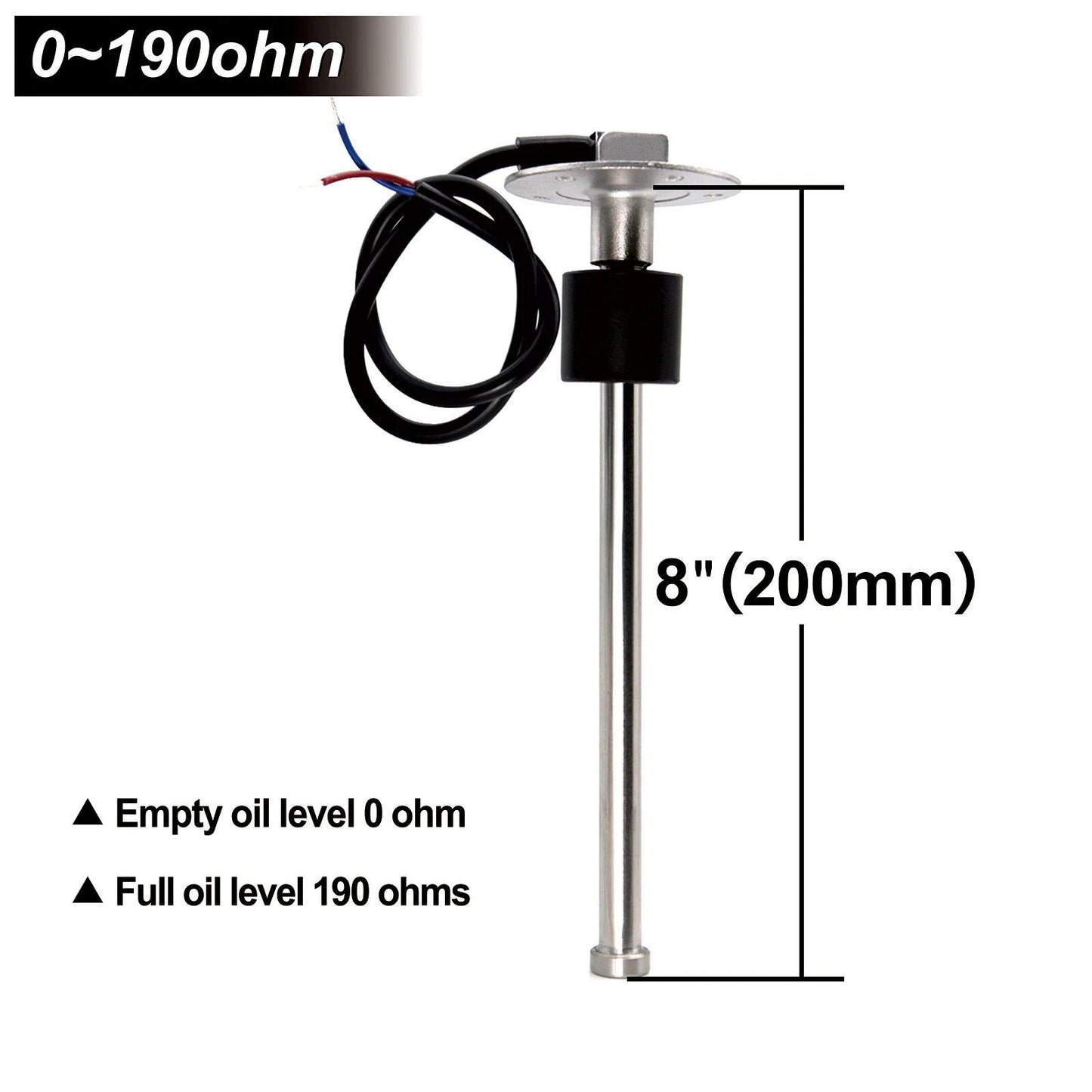

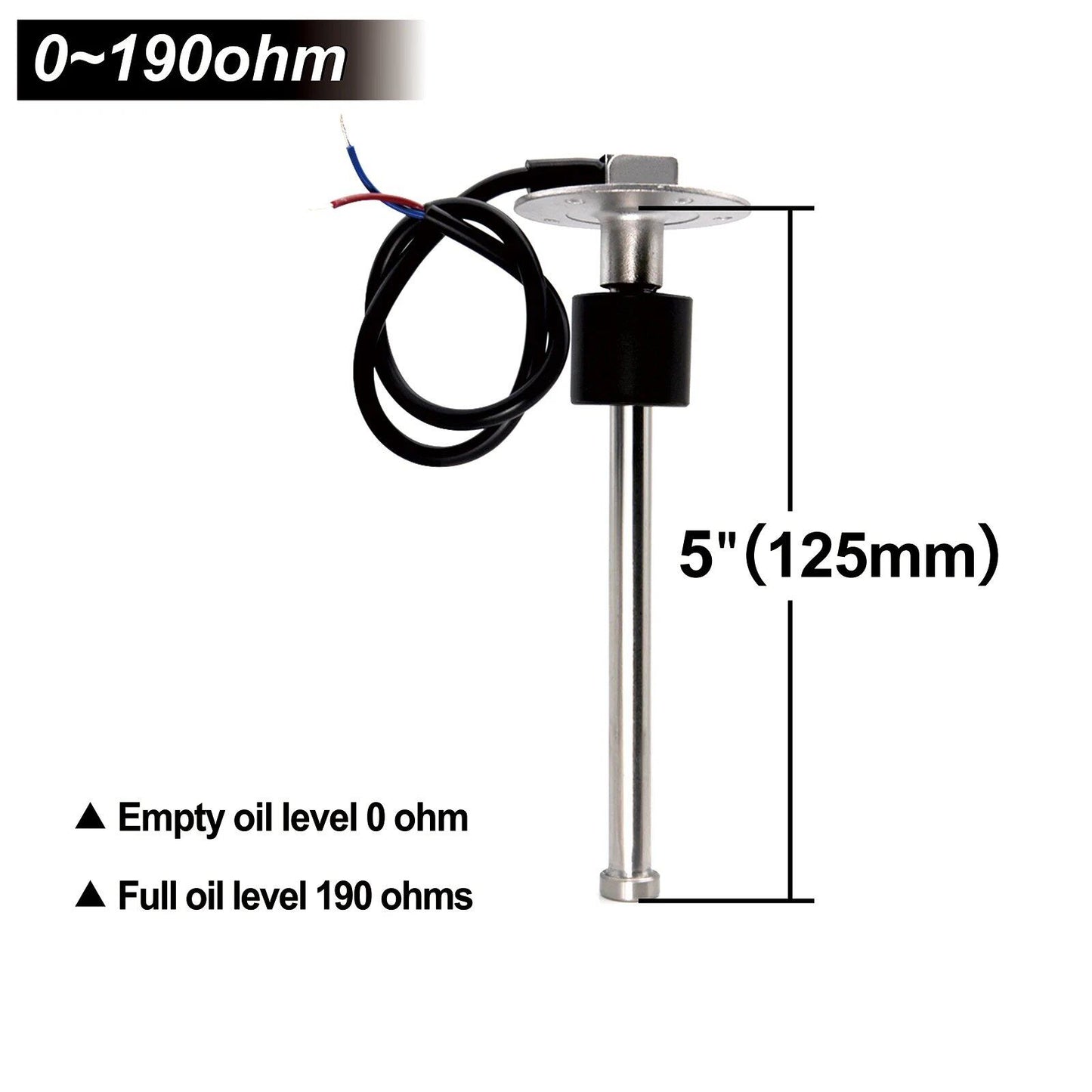

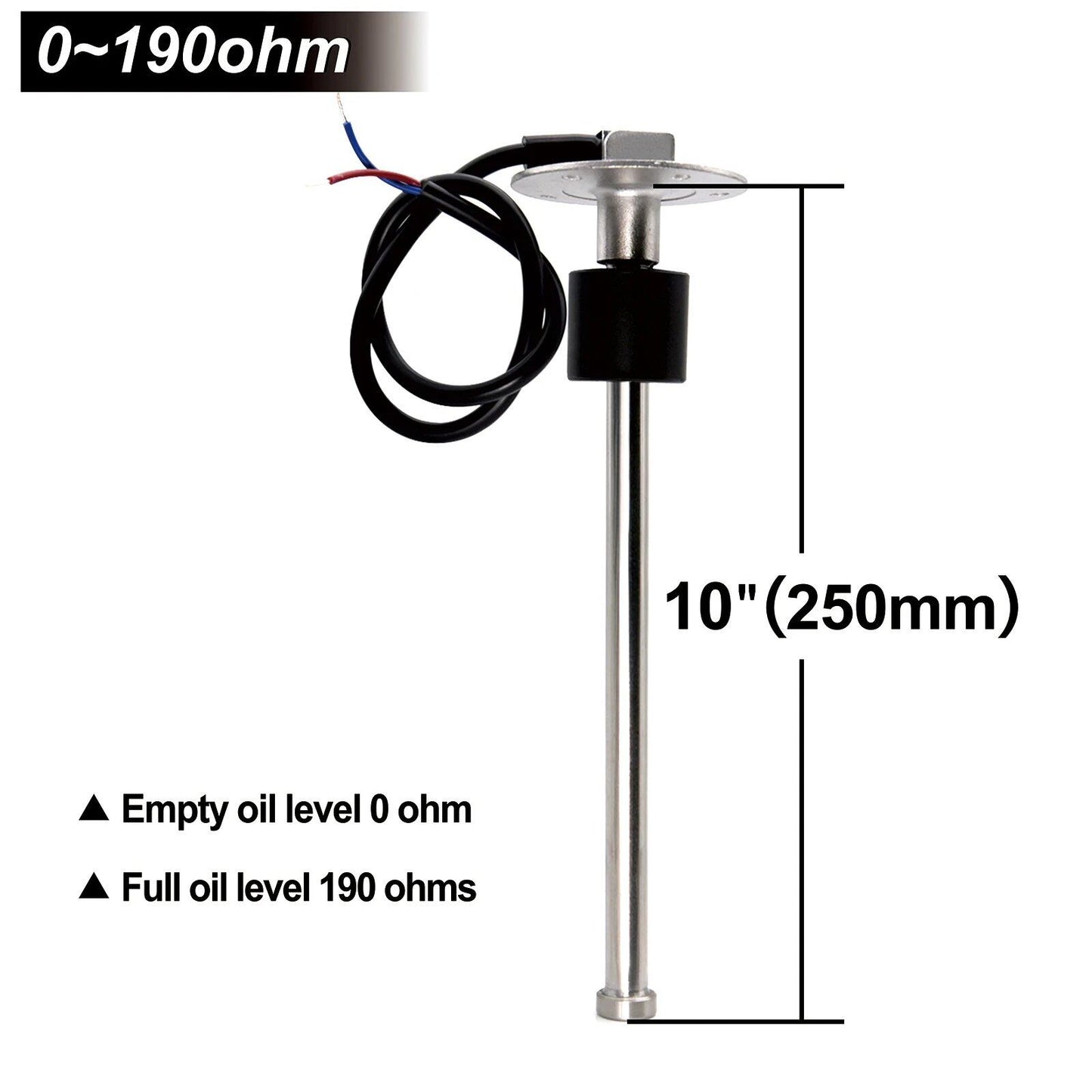

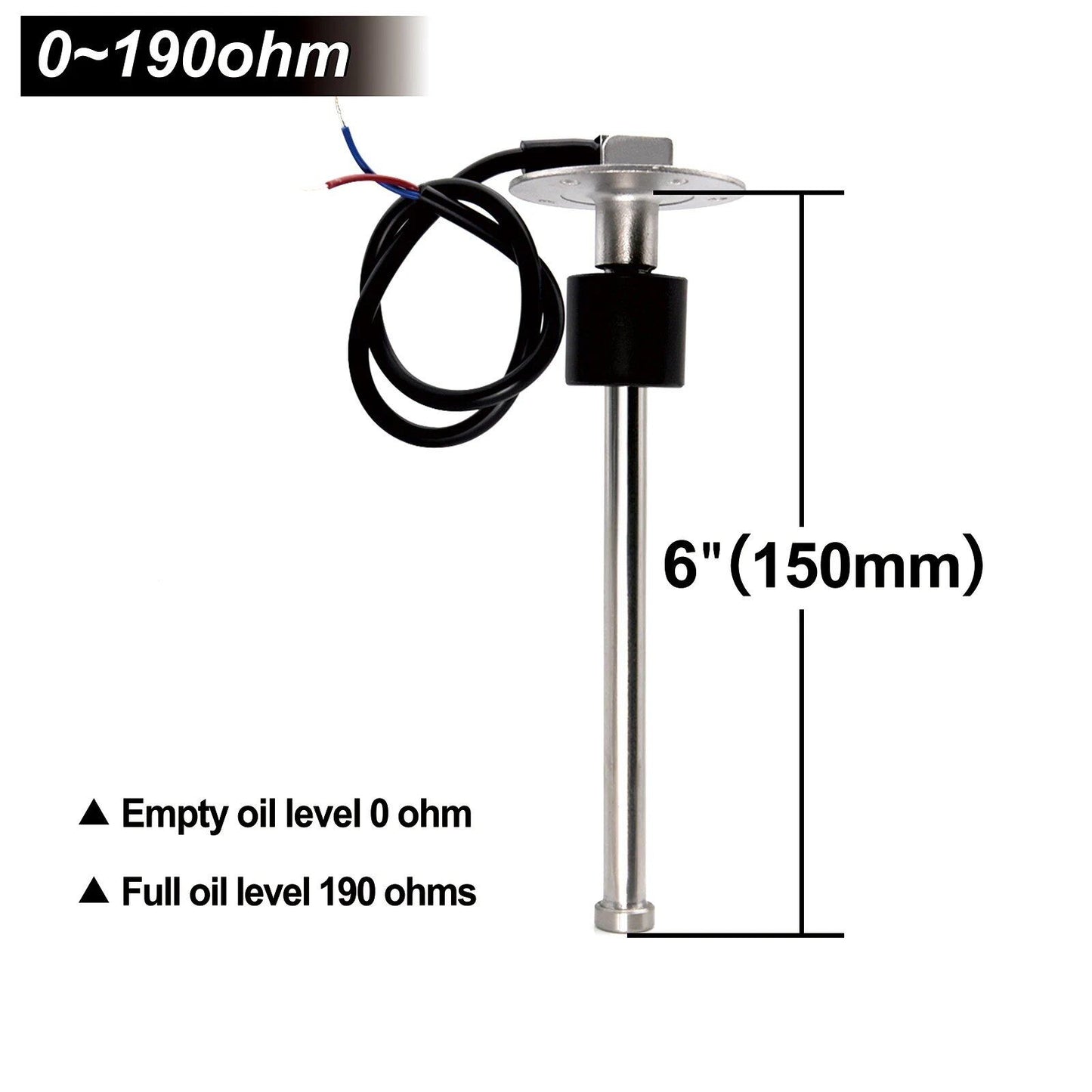

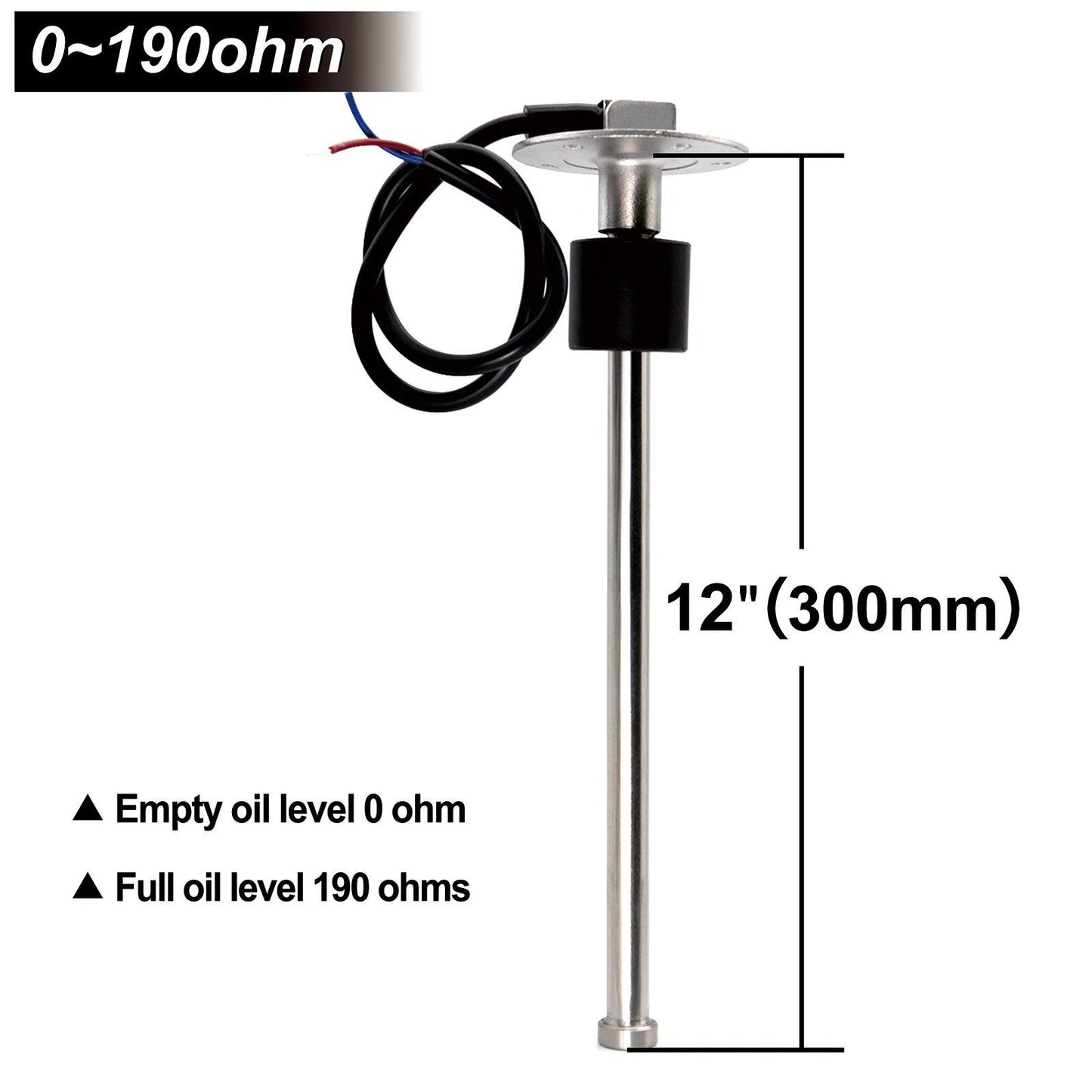

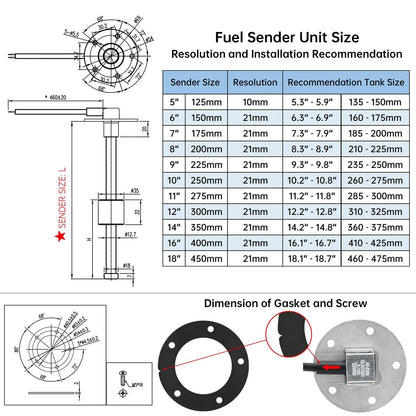

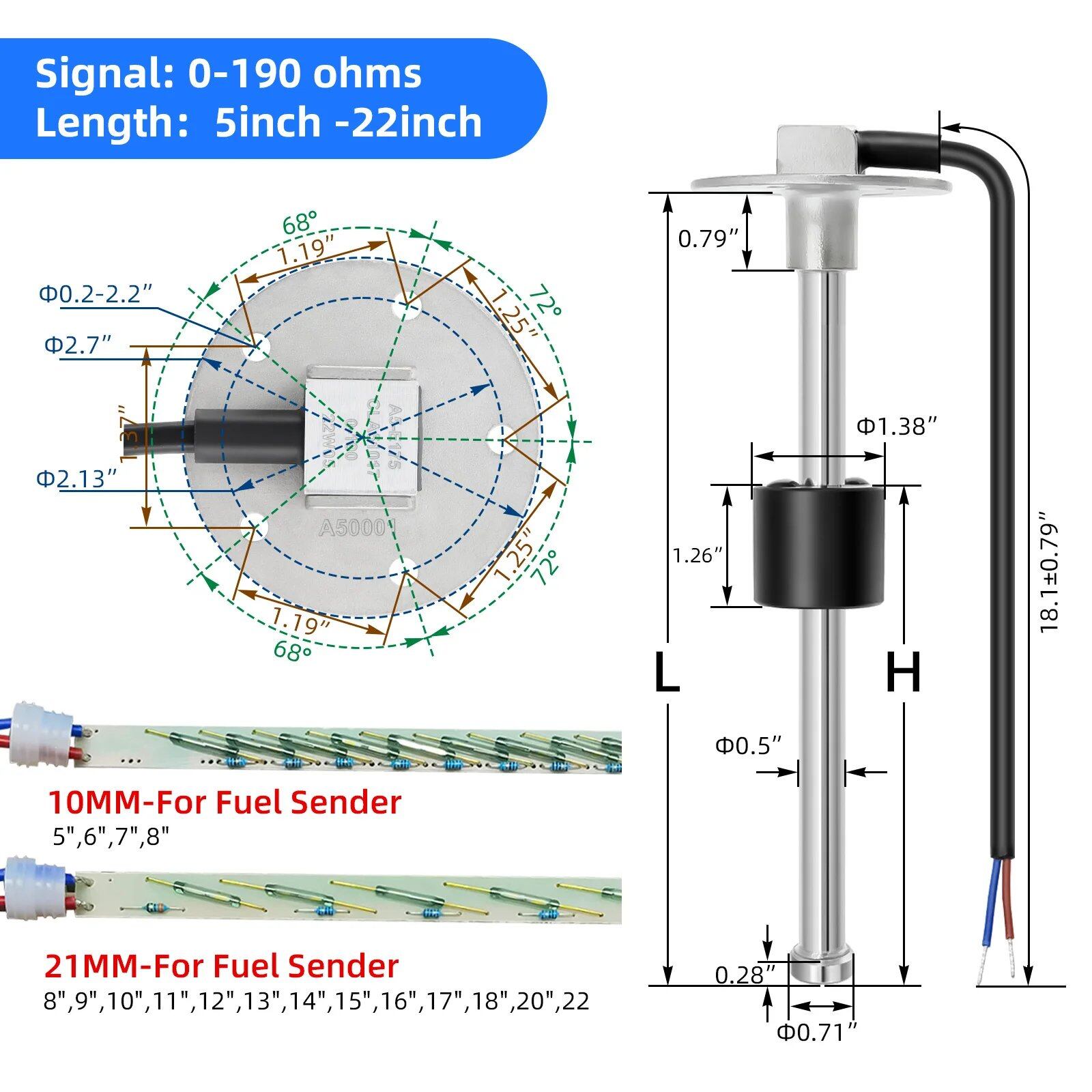

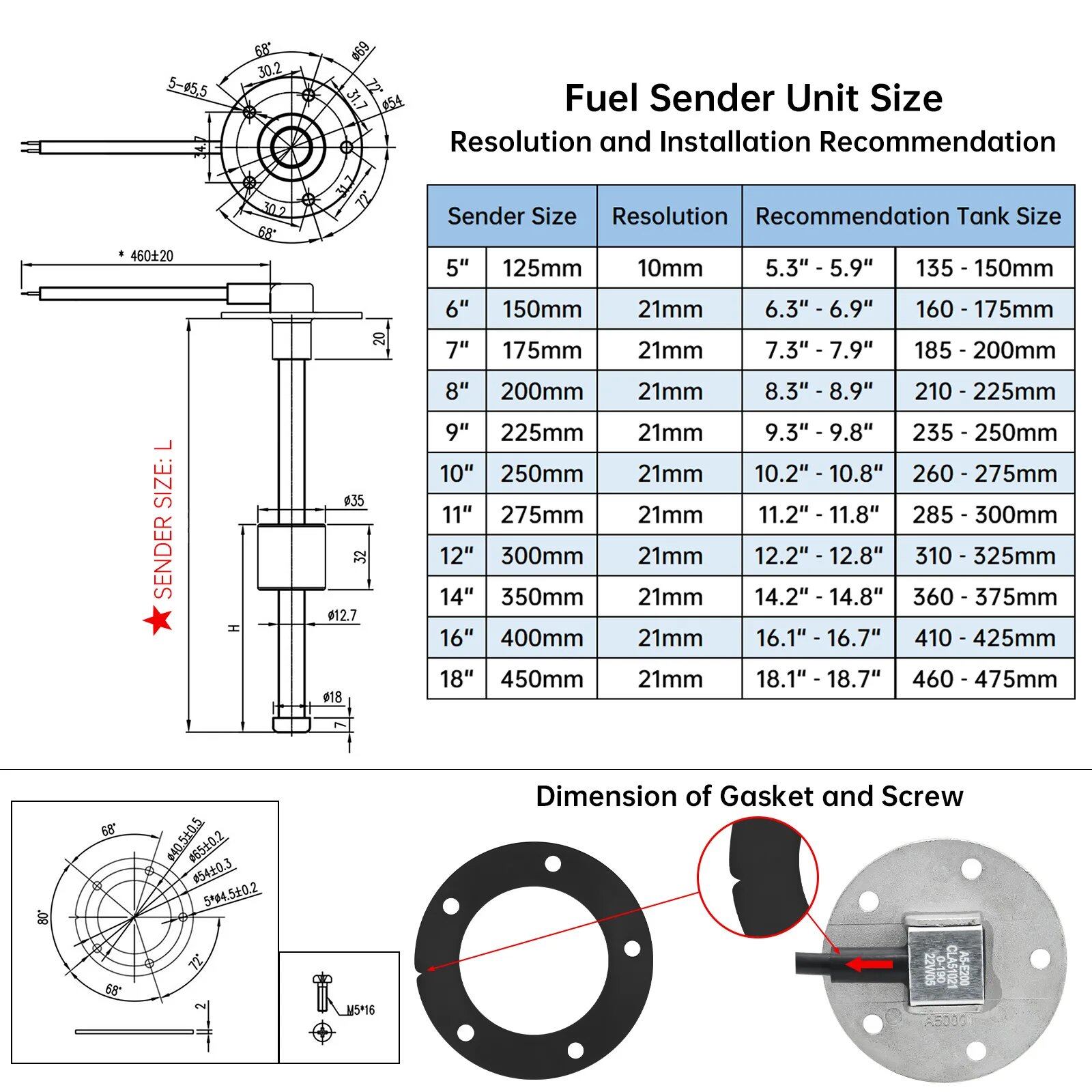

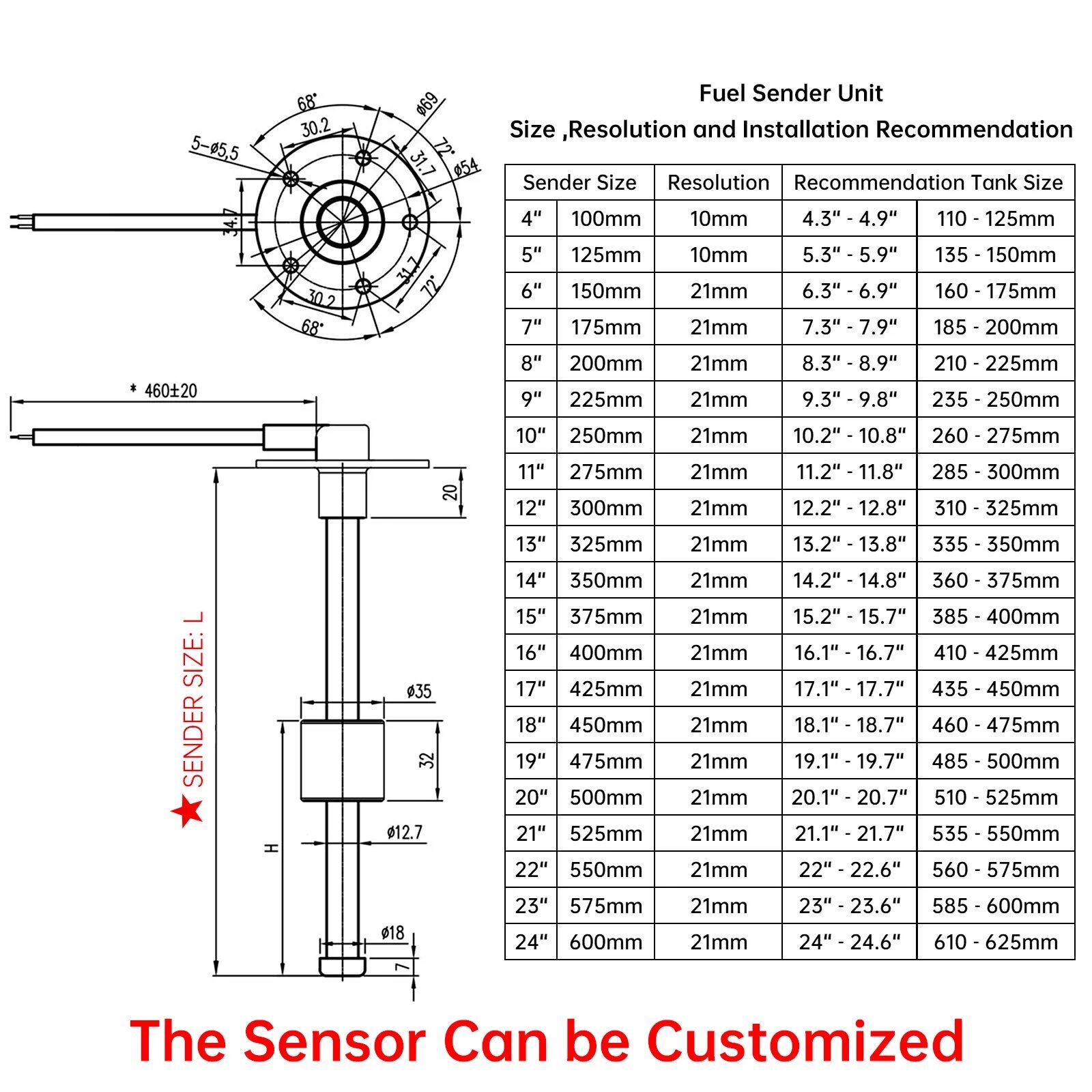

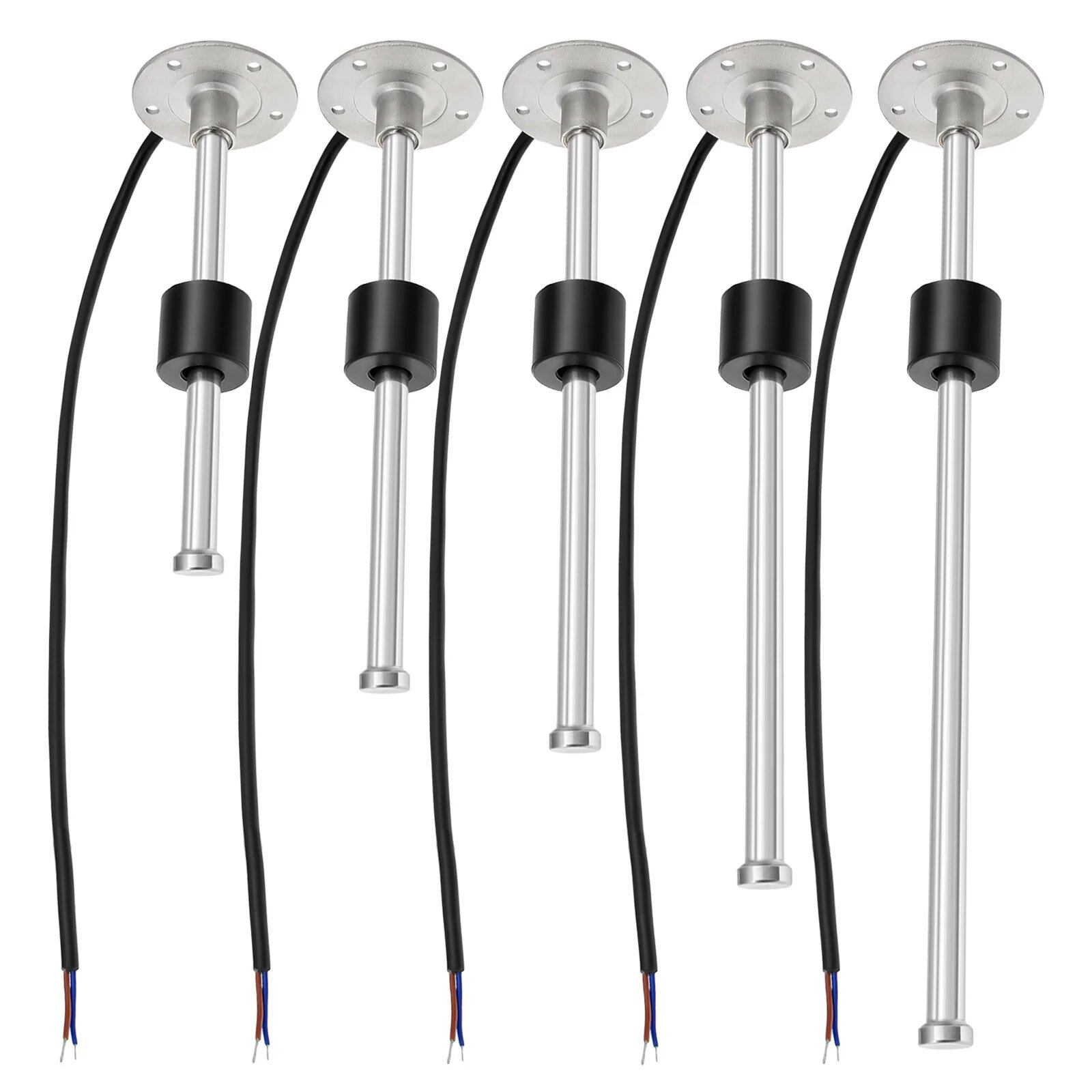

■Sensor length: 100mm to 500mm (15 sizes available at 25mm intervals)

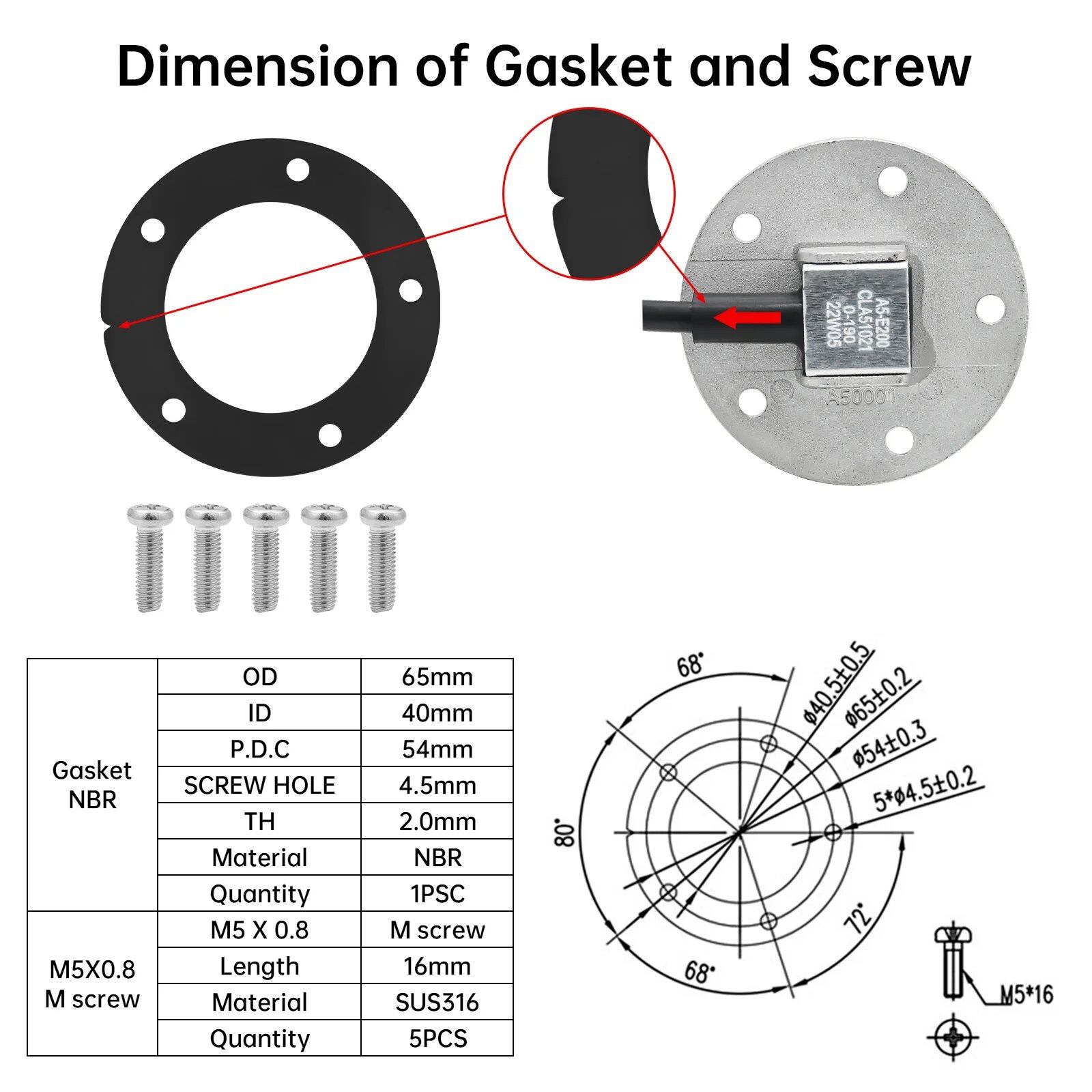

■ Mounting method: 5-hole specification (5 M5 screws + 2mm thick gasket included)

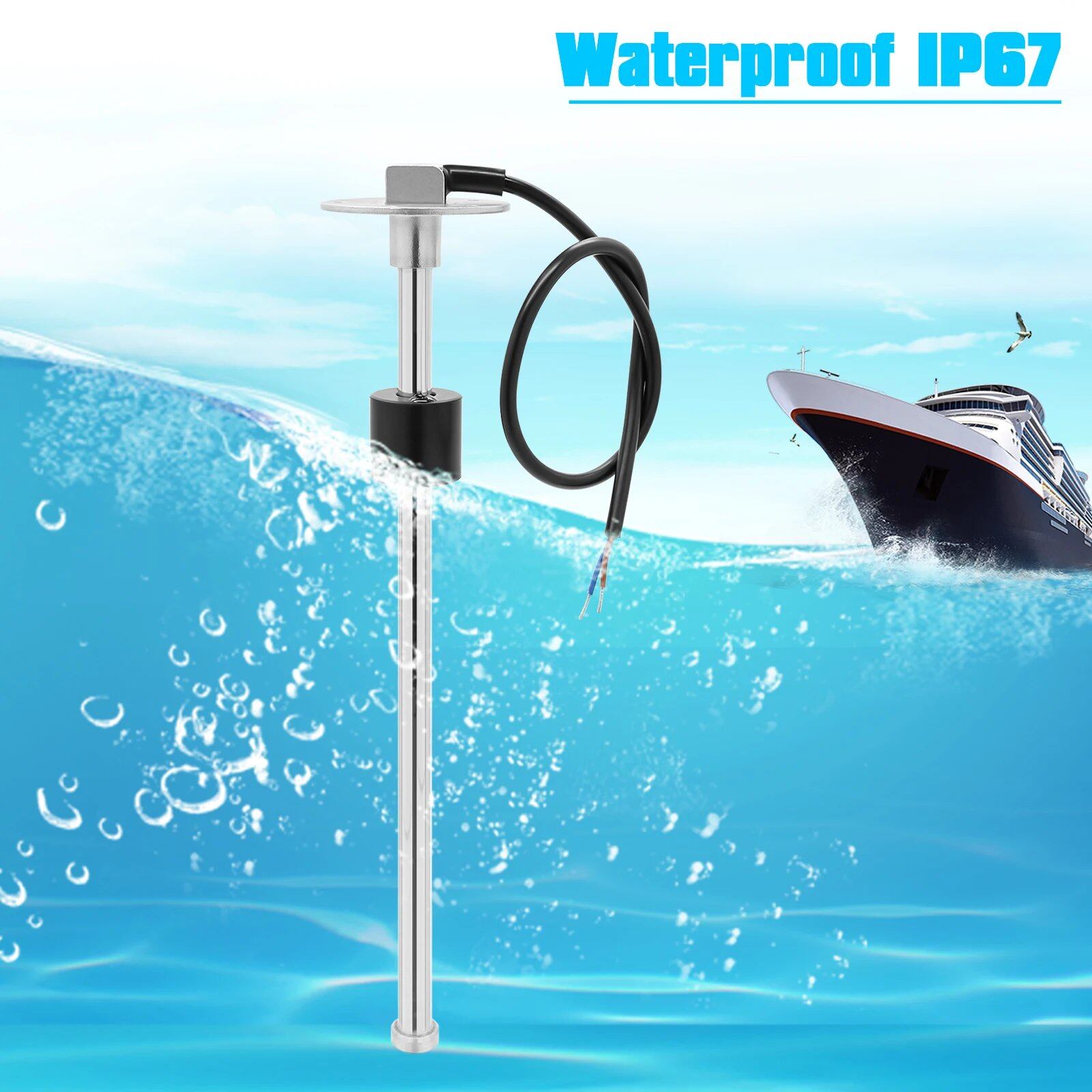

■ Protection rating: IP67 (dustproof and water-resistant)
■Compatible instruments: fuel gauge/water level gauge
[Safe design points]

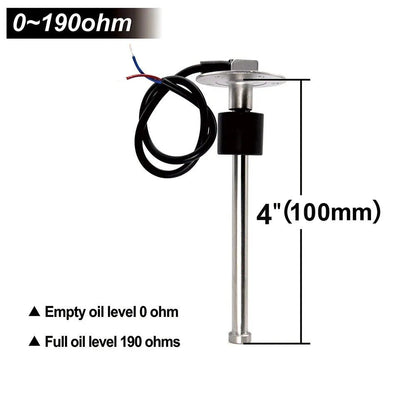

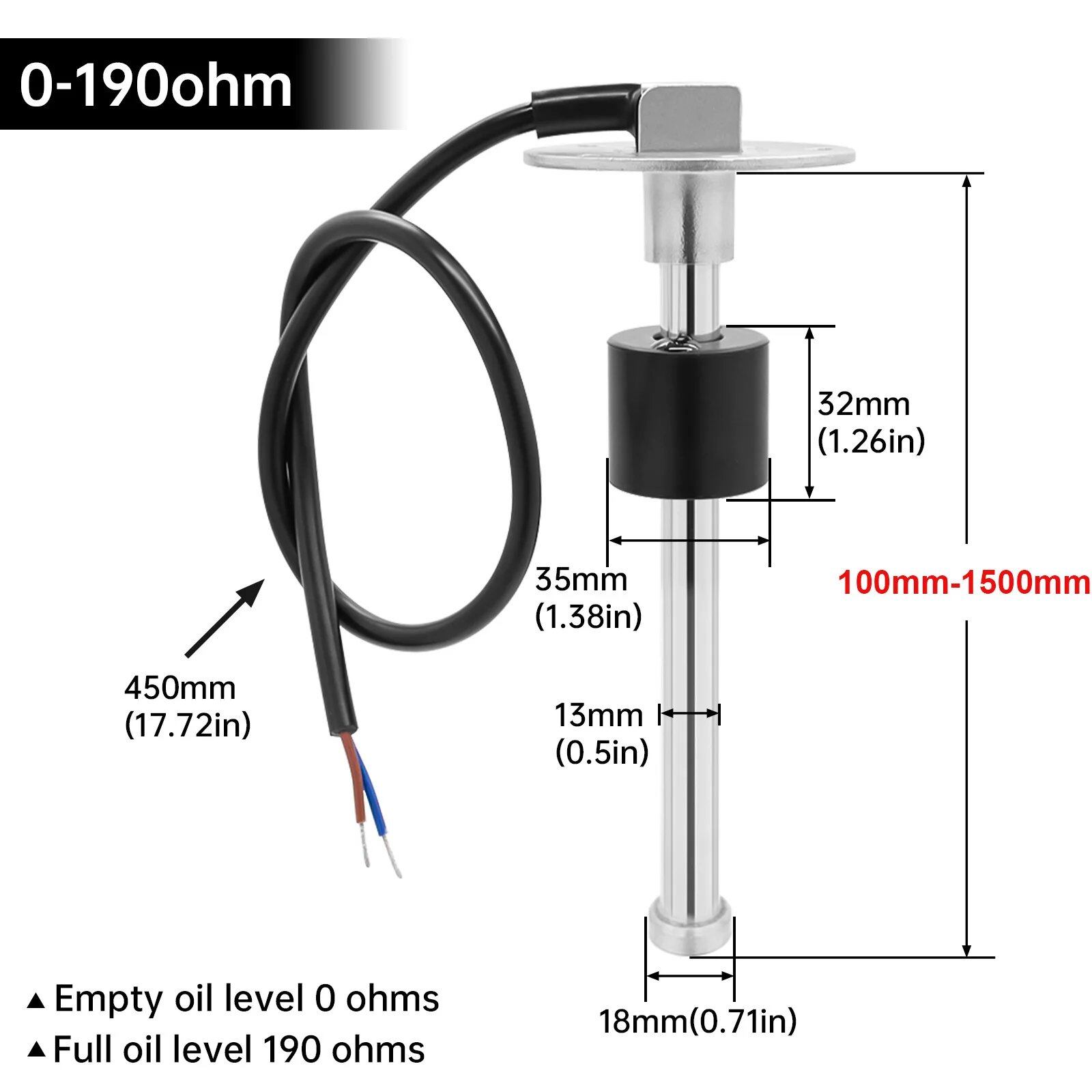

▼ Empty (0 ohms/240 ohms)
A safety distance of 3-21mm is maintained between the float and the bottom of the sensor, preventing excessive contact and ensuring long-life operation.
▼ Full tank (190 ohms/33 ohms)
A safety design with 3-15mm of clearance above the float and sensor prevents overload.

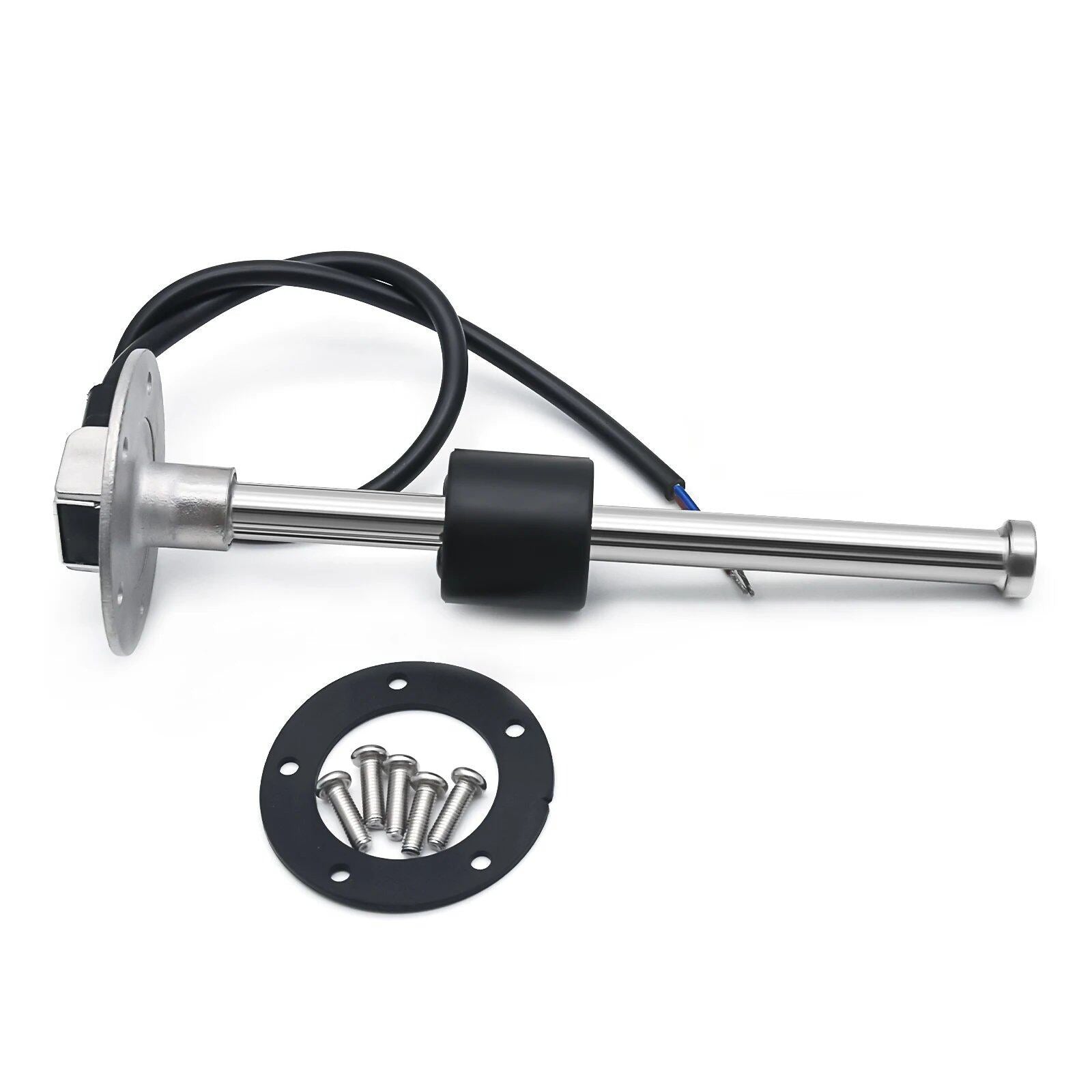

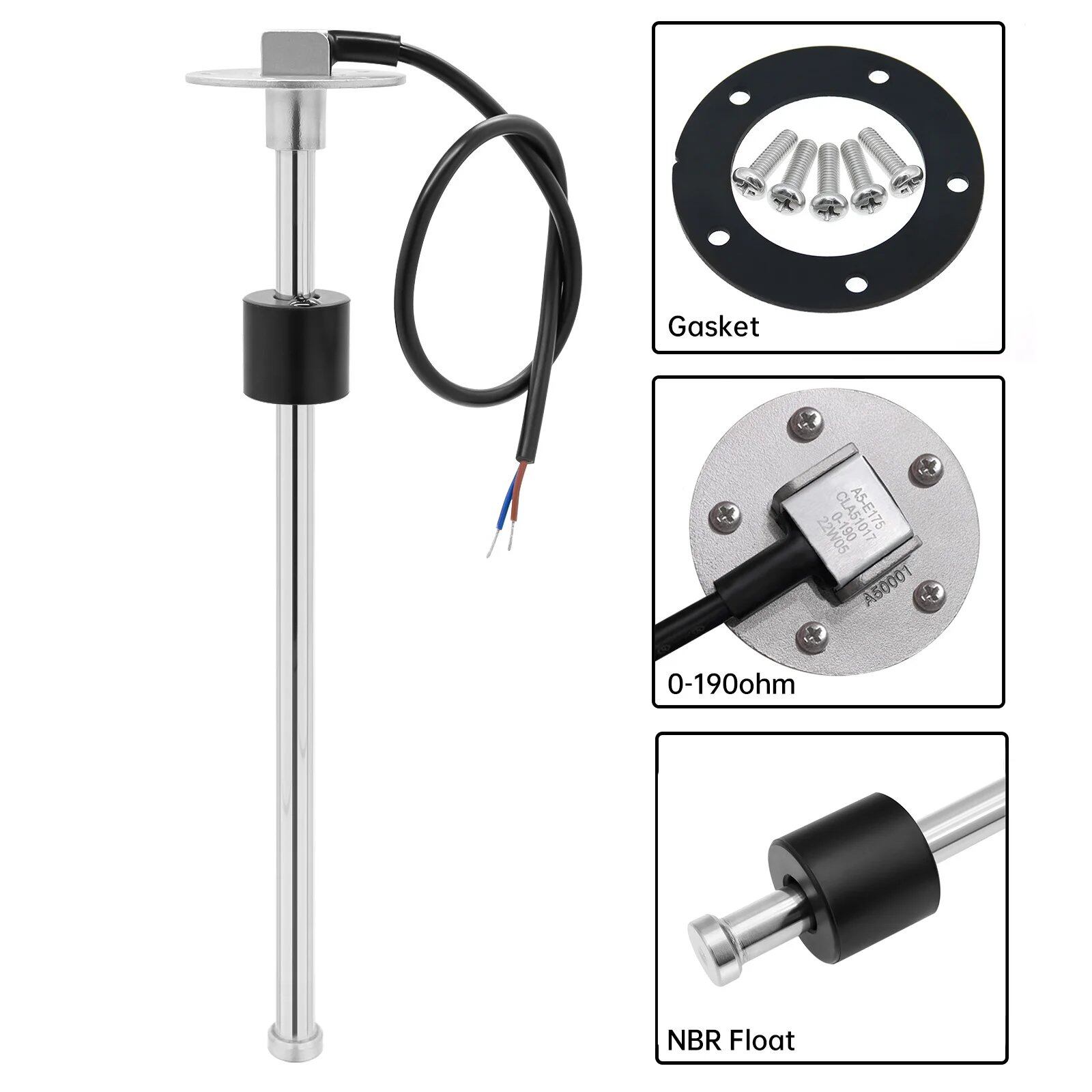

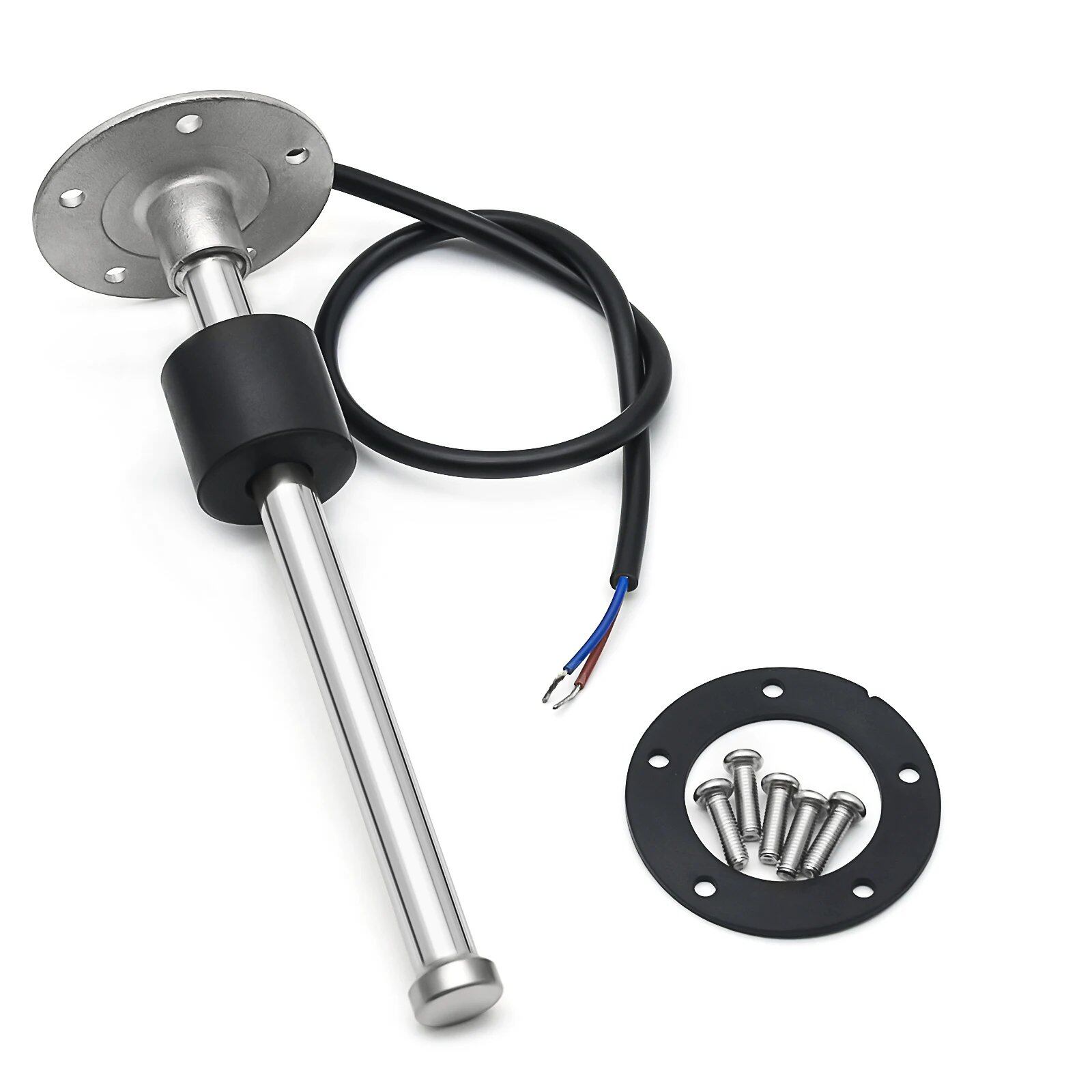

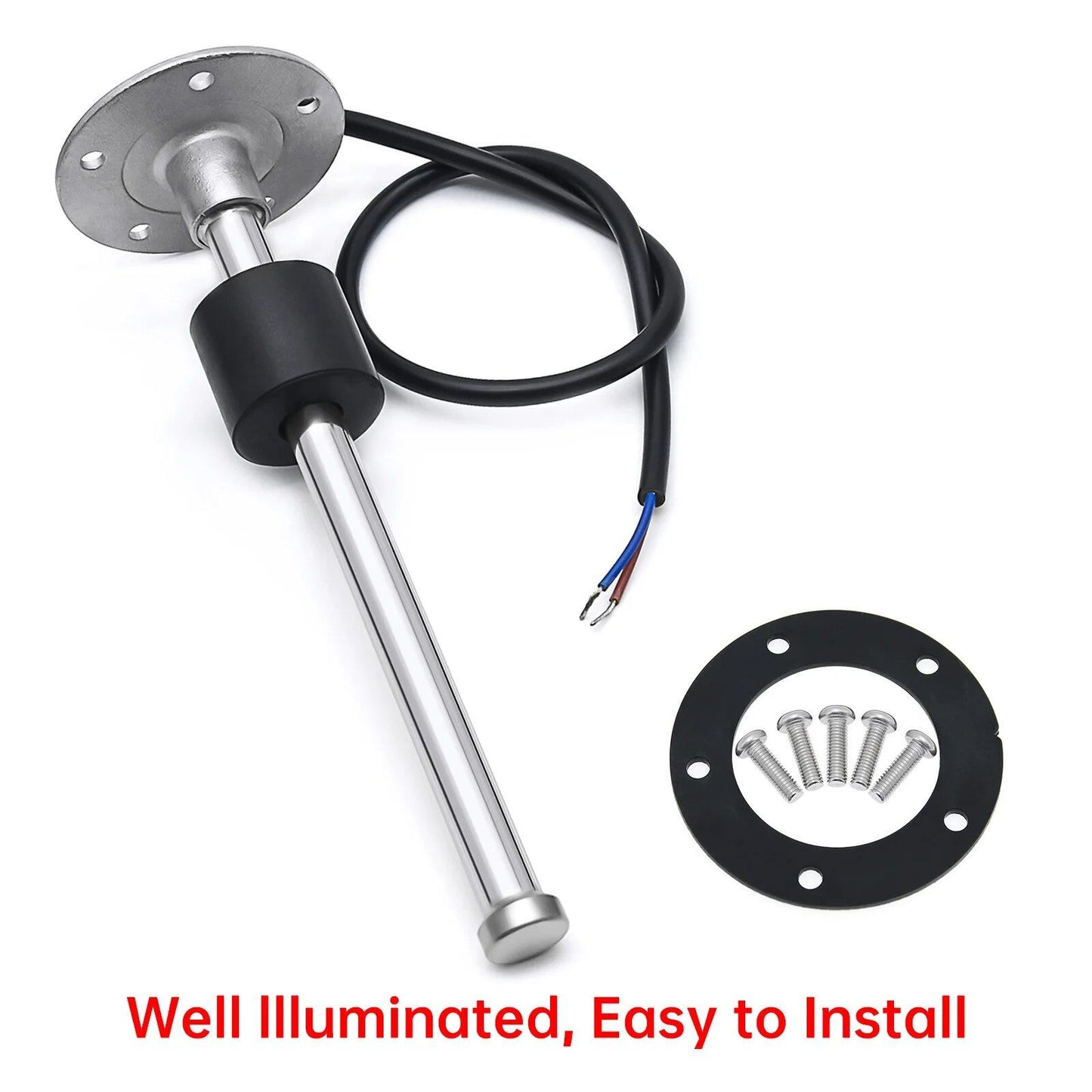

【accessories】
・Sensor body x 1
・Sealing gasket x 1 (2mm thick)
・Mounting screws (M5) x 5
【basic information】
■Brand: ZMFJH
■Material: Stainless steel (corrosion resistant)
Weight: 200-500g (varies depending on size)
■Compatible location: Front mounted
■ OEM compatible: signal specifications/length customizable
■Suitable meter: A5 compatible fuel meter
*Manufacture/no specific chemical substances used

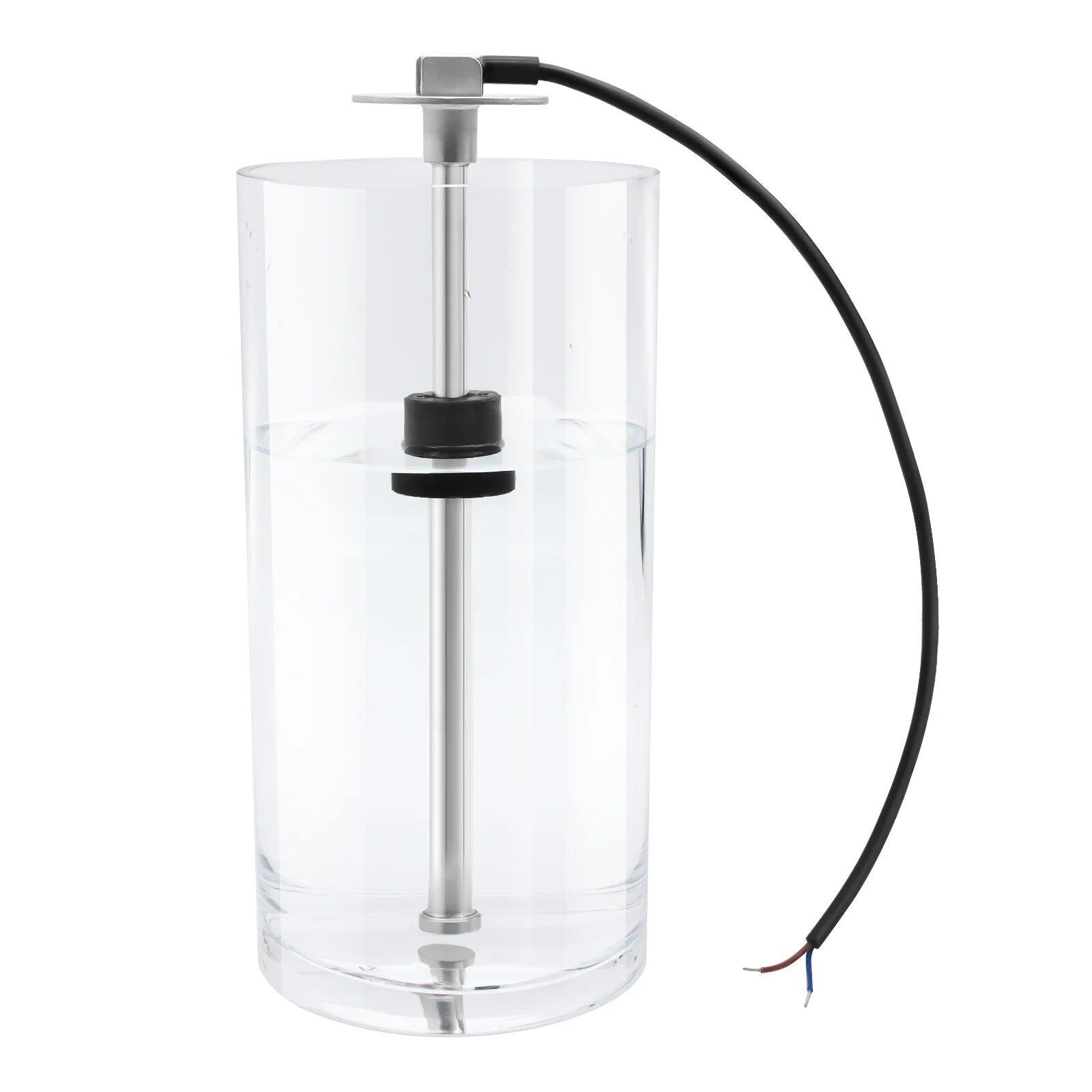

[Suitable for a variety of uses]
This high-precision sensor is ideal for a variety of level measurements, from managing the remaining amount in a fuel tank to monitoring the water level in a water tank.It demonstrates stable performance even in harsh environments, from industrial equipment to vehicle installation.

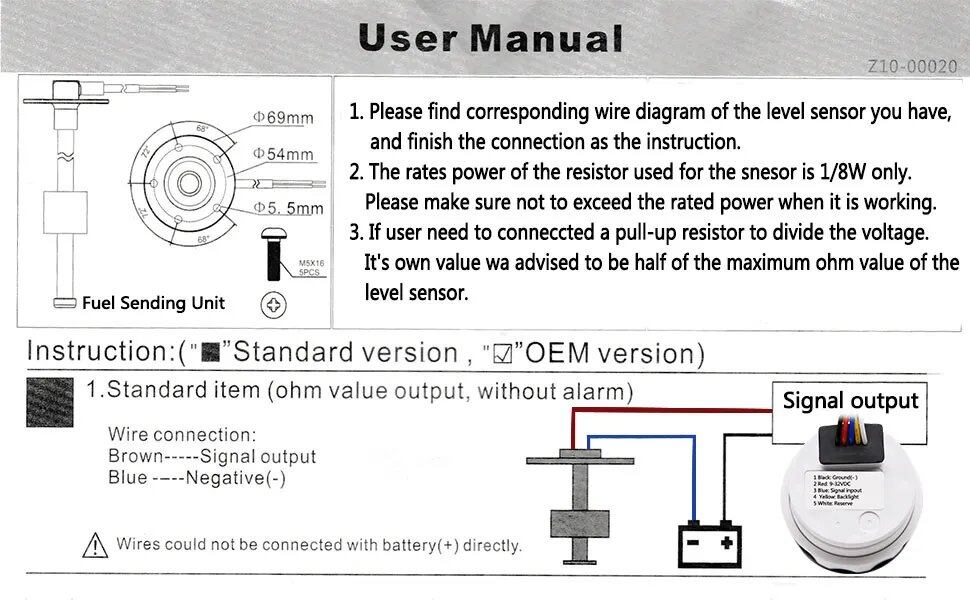

*When actually installing, please follow the instruction manual and ensure that the specified safety distance is maintained.
